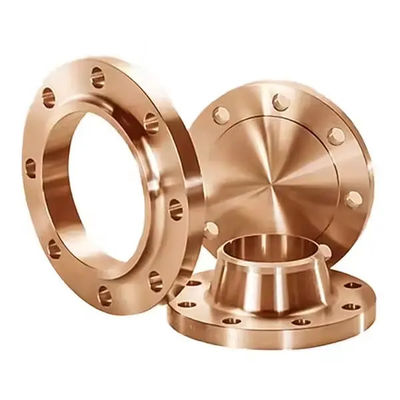

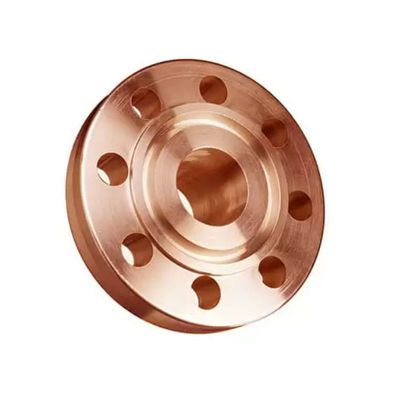

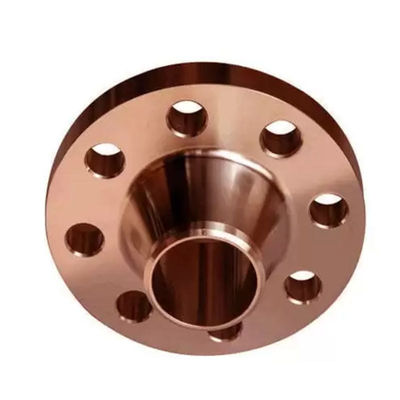

ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF

  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
  • ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF
Lieu d'origine Shanghai, Chine
Nom de marque TOBO
Certification ISO/TUV/SGS
Numéro de modèle Bride en nickel en cuivre
Quantité de commande min 1 pièce
Prix Négociable
Détails d'emballage Paquet d'expédition standard
Délai de livraison 15-30 jours de travail
Conditions de paiement T/T, Western Union
Capacité d'approvisionnement 10 tonnes par mois
Détails sur le produit
Nom du produit Bride forgée ASME B16.5 CuNi 70/30, soudure par emboîtement classe 150, SWRF de qualité marine Finition de surface Lisse, poli ou selon les spécifications du client
Densité 8,9 g / cm³ Type de connexion Soudage
Forme Coude Presse 20 bars
Longueur 75 millimètres Plage de température -96°C à 200°C (-320°F à 392°F)
Usinabilité Bien Grade Nickel de cuivre 90/10 (UNS 70600)
Application Les conduites se connectent Soudabilité Bien
Type de filetage ASME B1.20.1 (TNP) Taille Rane 1/2
Épaisseur 3x2,5 mm Gamme de tailles 1/2
Laisser un message
Description de produit

ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF



1.Product Description

The Copper Nickel Socket Weld Flange is manufactured from high-quality 70/30 Copper Nickel Alloy (CuNi 70/30, UNS C71500) in compliance with ASME B16.5 standard. This forged flange features a Class 150 pressure rating and socket weld connection type. The socket weld design allows the pipe to be inserted into a recessed area of the flange and welded around the outer diameter, creating a strong, leak-proof permanent connection ideal for high-pressure systems . The 70/30 copper-nickel alloy consists of 70% copper and 30% nickel, with trace amounts of iron and manganese, providing excellent mechanical properties and corrosion resistance

.

 2. Applications

Due to the alloy's exceptional resistance to seawater corrosion and biofouling, CuNi 70/30 flanges are widely used in :

  • Marine & Offshore Engineering: Seawater cooling systems, shipbuilding, desalination plants, offshore platforms

  • Petrochemical Industry: Chemical processing, heat exchangers, pressure vessels

  • Power Generation: Nuclear and thermal power plant cooling systems

  • Naval Applications: Naval ship piping systems (DEF STAN 02-879 compliant)

  • Industrial Applications: Hydraulic pipelines, firewater systems, fish farming cages

3. Product Functions

The Copper Nickel Socket Weld Flange serves the following functions in piping systems:

  • Pipe Connection: Provides a reliable, leak-proof connection between pipes, valves, pumps, and other equipment

  • System Access Point: Allows for easy disassembly and maintenance of piping systems

  • Pressure Containment: Safely contains system pressure up to Class 150 rating

  • Flow Direction Control: Facilitates changes in piping direction when used with elbows or tees

  • Equipment Isolation: When used with blind flanges, can isolate sections of the piping system

​ASME B16.5 CuNi 70/30 Forged Flange, Class 150 Socket Weld, Marine Grade SWRF 0

​4.Technical Specifications

Parameter Specification
Material Grade CuNi 70/30 (UNS C71500)
Standard ASME B16.5 / ANSI B16.5
Pressure Class Class 150 (also available: 300#, 600#, 900#, 1500#, 2500#)
Connection Type Socket Weld (SW)
Size Range 1/4" to 24" (DN15-DN600)
Face Type Raised Face (RF) / Flat Face (FF)
Chemical Composition Cu: 70%, Ni: 30%, Mn: 0.5-1.5%, Fe: 0.6-1.0%
Tensile Strength ≥350 MPa
Yield Strength (0.2%) ≥130 MPa
Elongation ≥36%
Density 0.323 lb/in³ (8.94 g/cm³) at 68°F
Temperature Range Up to 400°F (204°C)
